Industrial Analog Pressure Gauges
Precision-engineered for reliability and accuracy, our analog pressure gauges are built to withstand the toughest industrial environments.
100 Series: Light Industrial Gauges

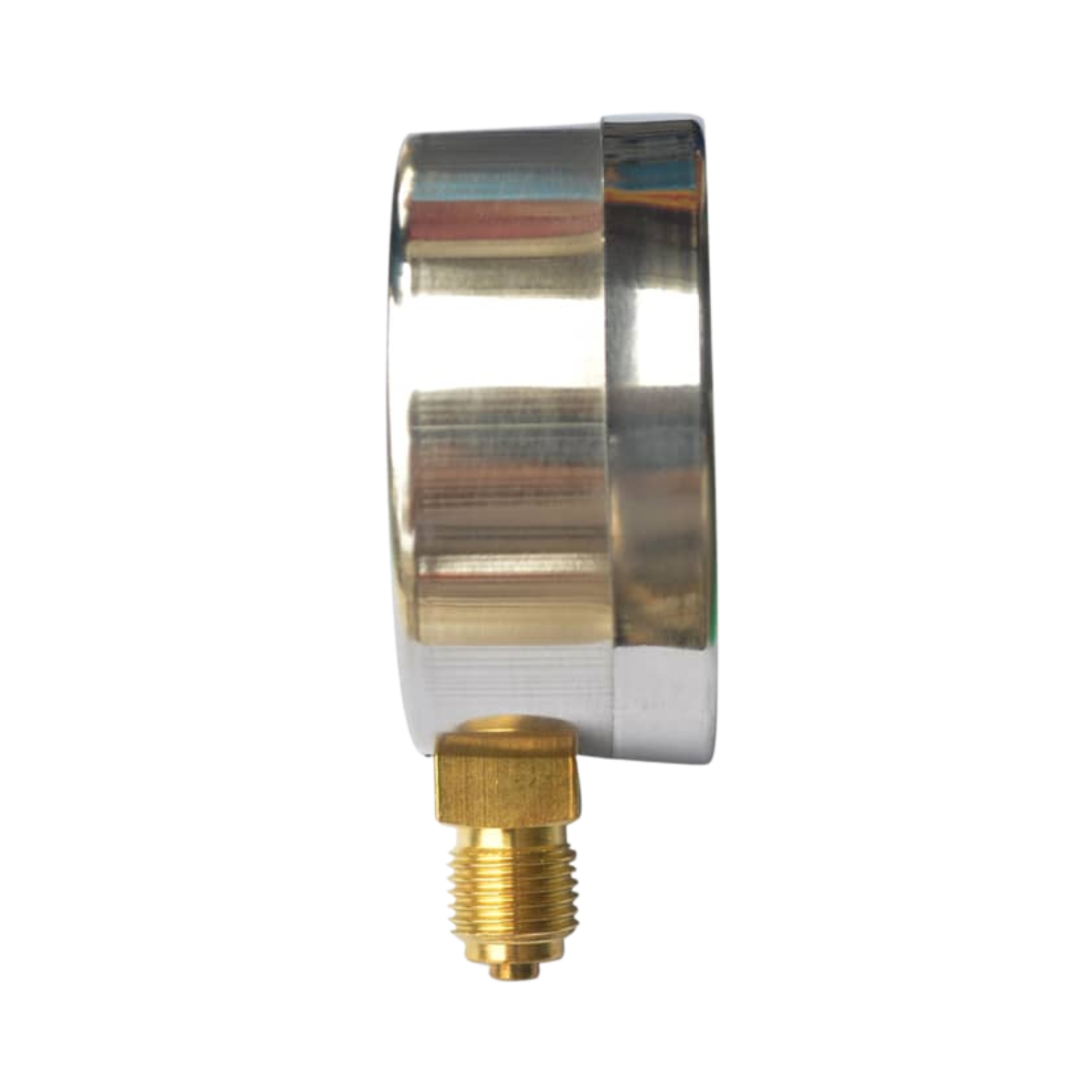

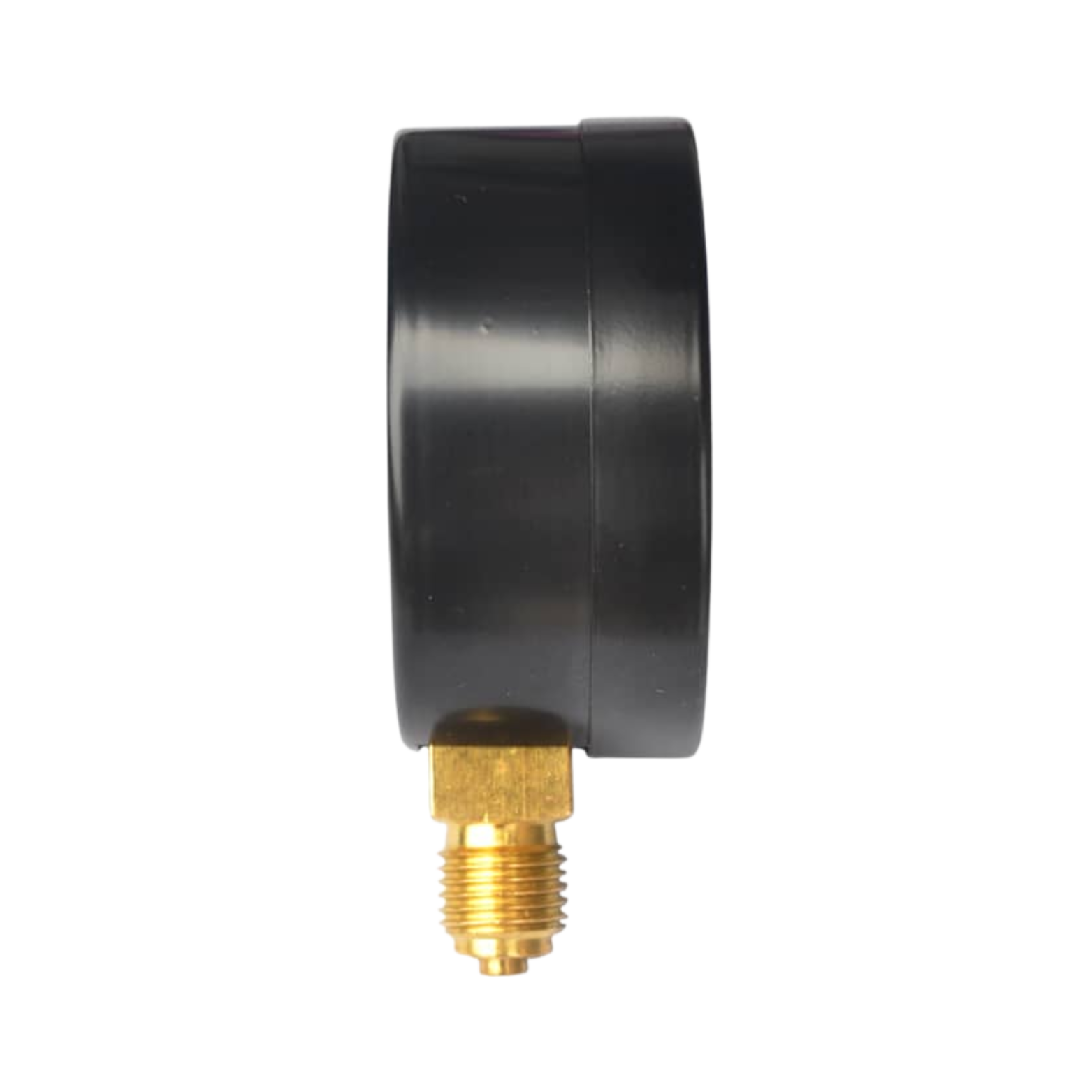

The 100 Series Light Industrial Dry Pressure Gauges deliver reliable, cost-effective pressure monitoring for applications with low corrosion and minimal vibration. Designed specifically for dry environments, these gauges are not suited for settings with excessive vibration. Available in ABS plastic, black steel, or stainless steel cases, they offer durable construction for light industrial use. Compatible with fluids suited for copper alloy tubes, the 100 Series ensures accurate readings without liquid filling, making them a low-maintenance choice for systems like compressed air and pneumatic equipment.

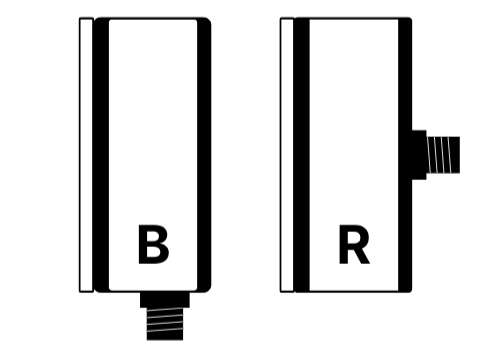

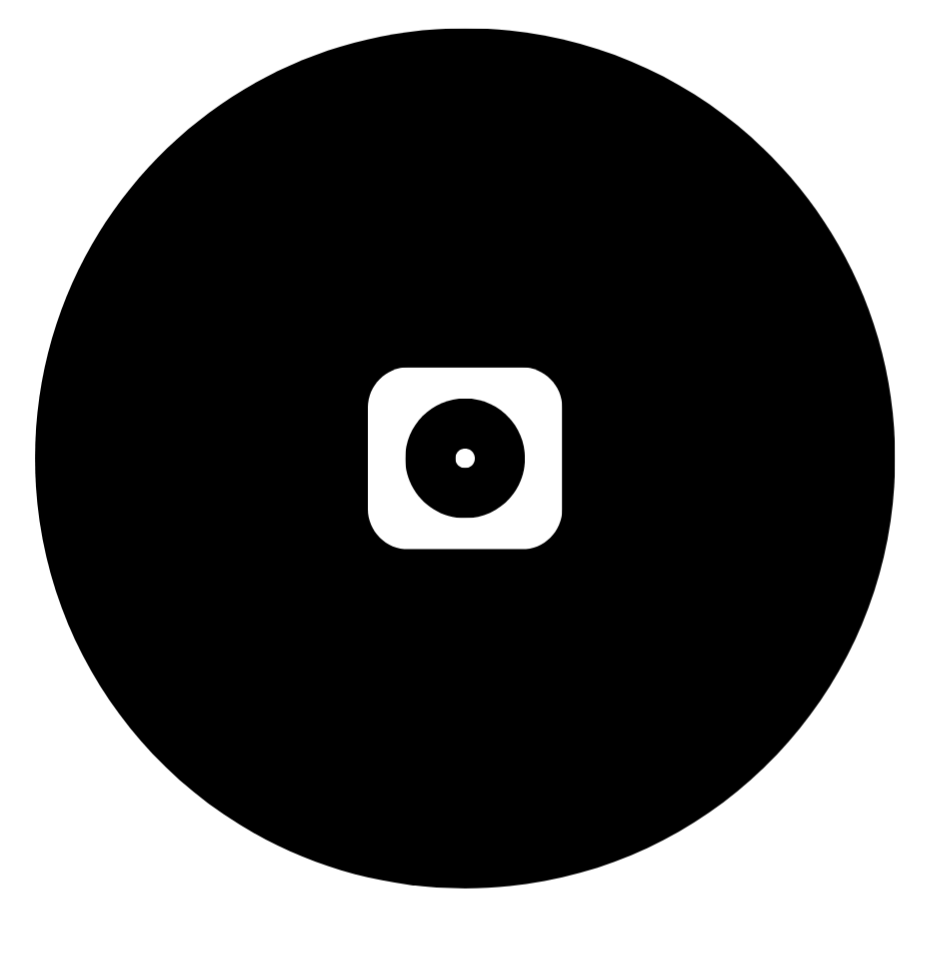

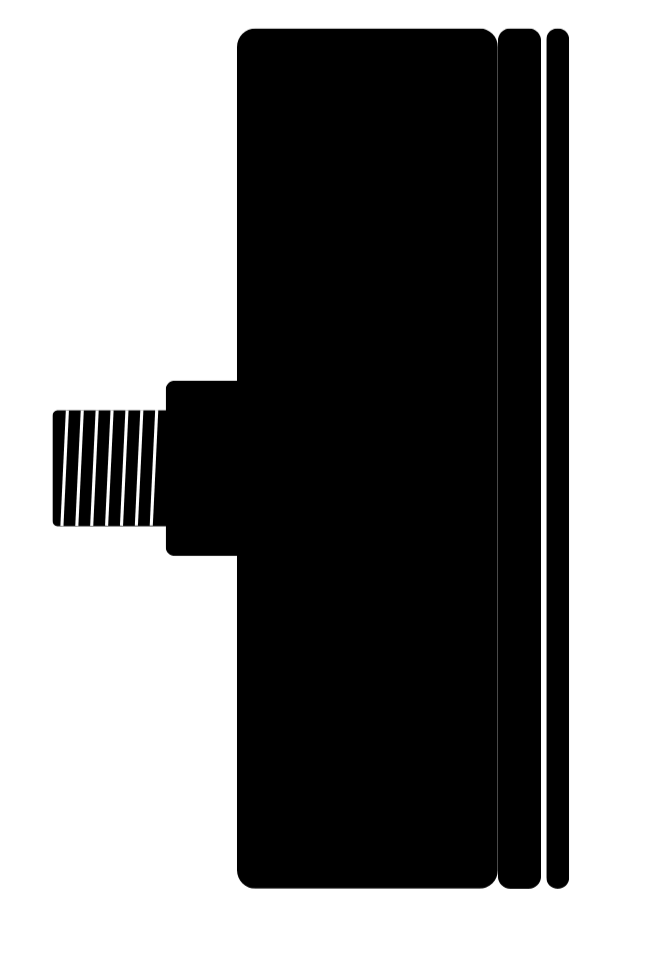

Note that R is Rear-Mount Center.
Versatile Compatibility: provides a range of cost-effective gauges designed for applications where ambient or process corrosion is not a concern, making them ideal for non-vibrating environments.
Durable Construction: Built with high-quality ABS plastic or steel steel cases, with copper alloy and bronze components for reliable performance in light industrial environments.
Accurate Measurement: Provides precise pressure readings for consistent monitoring in light industrial applications.
Compact Design: Lightweight and space-efficient, ideal for integration into various commercial and industrial systems.
Cost-Effective Solution: Engineered for affordability without compromising on quality, perfect for budget-conscious projects.
Easy Installation: User-friendly design ensures quick setup and minimal maintenance for operational efficiency.
Pressure Gauge Specifications
Explore the technical details of our Series 100 pressure gauges to ensure the right fit for your application.
| Specification | Details |
|---|---|
| Series | 100 |
| Case Material | ABS Plastic, Black Steel, Stainless Steel |
| Dial Size | 2", 2-1/2", 3", 4" |
| Dial Scale | PSI, bar, Hg |
| Scale Range | 30 Hg - 6000 PSI |
| Wetted Parts | Copper Alloy |
| Connection Material | Brass |
| Connection Type | NPT |
| Connection Size | 1/4" |
| Window Material | Plastic Window |
| Accuracy Class | 1.6% for 2"-3", 1.6%-1% for 4" |
| Case Filling | Dry |
| Mounting Configuration | Bottom or Rear |
| Certifications/Standards | ISO 9001 |
| Pointer Mechanism | Aluminum Finish |
| Operating Temperature | -40°F to 140°F |
| Media Temperature | 140°F Maximum |
| Environmental Rating | IP-43 |
For more information, contact us at support@ngaugeinstruments.com.
200 Series: Sealed Industrial, Liquid-Filled Gauges
The 200 Series Industrial Pressure Gauges deliver robust pressure monitoring for demanding applications, offering enhanced resistance to corrosion and vibration. Constructed with stainless steel cases and available with either brass or stainless steel tubes, these gauges are built for durability in harsh environments. They feature windows in either polycarbonate or tempered glass for added resilience. Fillable with glycerin or silicone oil for improved performance and stability, the 200 Series is ideal for industrial systems like hydraulic equipment, chemical processing, and heavy machinery, ensuring accurate and reliable readings.
Note that R is Rear-Mount Center.
Versatile Compatibility: Offers a variety of cost-effective gauges suitable for applications where ambient or process corrosion is not an issue, perfect for non-vibrating settings.
Durable Construction: Crafted with high-quality steel, copper alloy, and bronze components for dependable performance in light industrial conditions.
Accurate Measurement: Delivers precise pressure readings for reliable monitoring in standard industrial applications where vibration is a concern.
Compact Design: Lightweight and space-saving, making it easy to integrate into diverse commercial and industrial systems.
Cost-Effective Solution: Designed for affordability while maintaining high quality, ideal for budget-friendly projects.
Easy Installation: Features a user-friendly design for quick setup and low maintenance, enhancing operational efficiency.
Pressure Gauge Specifications
Explore the technical details of our Series 200 pressure gauges to ensure the right fit for your application.
| Specification | Details |
|---|---|
| Series | 200 |
| Case Material | 304 Stainless Steel |
| Dial Size | 2-1/2", 3", 4" |
| Dial Scale | PSI, bar, Hg |
| Scale Range | 30 Hg - 15,000 PSI |
| Wetted Parts | Copper Alloy |
| Connection Material | Brass, Stainless Steel |
| Connection Type | NPT |
| Connection Size | 1/4" |
| Window Material | Tempered Glass, Polycarbonate |
| Accuracy Class | 1.6% for 2"-3", 1.6%-1% for 4" |
| Case Filling | Glycerine or Silicone Filled |
| Mounting Configuration | Bottom or Rear |
| Certifications/Standards | ISO 9001 |
| Pointer Mechanism | Aluminum Finish |
| Operating Temperature | -40°F to 140°F |
| Media Temperature | 140°F Maximum |
| Environmental Rating | IP-65 |
For more information, contact us at support@ngaugeinstruments.com.
300 Series: Sealed Industrial, Liquid-Filled, All Stainless Steel Gauges
The 300 Series Industrial Pressure Gauges are designed for maximum durability and corrosion resistance in the harshest environments. Built entirely from stainless steel, including the case, tube, and socket, these gauges provide exceptional strength and reliability. These also feature windows in either polycarbonate or tempered glass for superior protection. Engineered for extreme conditions, the 300 Series offers precise pressure monitoring for critical applications such as chemical processing, marine systems, and heavy industrial operations. Available with glycerin or silicone oil filling for enhanced stability, these gauges are the premier choice for uncompromising performance.
Note that R is Rear-Mount Center.
Versatile Compatibility: Offers a range of durable gauges suitable for applications where ambient or process corrosion is a concern, ideal for non-vibrating environments and compatible with a variety of media.
Durable Construction: Fully crafted from high-quality stainless steel, including case, tube, and socket, ensuring exceptional resistance to corrosion and robust performance in demanding light industrial conditions.
Accurate Measurement: Provides precise pressure readings for reliable monitoring in standard industrial applications, even in the presence of vibration.
Compact Design: Lightweight and space-efficient, designed for easy integration into diverse commercial and industrial systems.
Cost-Effective Solution: Engineered for affordability while delivering superior quality, making it a smart choice for budget-conscious projects.
Easy Installation: Features a user-friendly design with liquid filling options for severe service, ensuring quick setup and low maintenance for enhanced operational efficiency.
Pressure Gauge Specifications
Explore the technical details of our Series 200 pressure gauges to ensure the right fit for your application.
| Specification | Details |
|---|---|
| Series | 300 |
| Case Material | 304 Stainless Steel |
| Dial Size | 2", 2-1/2", 3", 4" |
| Dial Scale | PSI, bar, Hg |
| Scale Range | 30 Hg - 15,000 PSI |
| Wetted Parts | 316 Stainless Steel |
| Connection Material | Stainless Steel |
| Connection Type | NPT |
| Connection Size | 1/4" |
| Window Material | Tempered Glass, Polycarbonate |
| Accuracy Class | 1.6% for 2"-3", 1.6%-1% for 4" |
| Case Filling | Glycerine or Silicone Filled |
| Mounting Configuration | Bottom or Rear |
| Certifications/Standards | ISO 9001 |
| Pointer Mechanism | Aluminum Finish |
| Operating Temperature | -40°F to 140°F |
| Media Temperature | 140°F Maximum |
| Environmental Rating | IP-65 |
